| (all dimensions in mm) | ||||||||||||

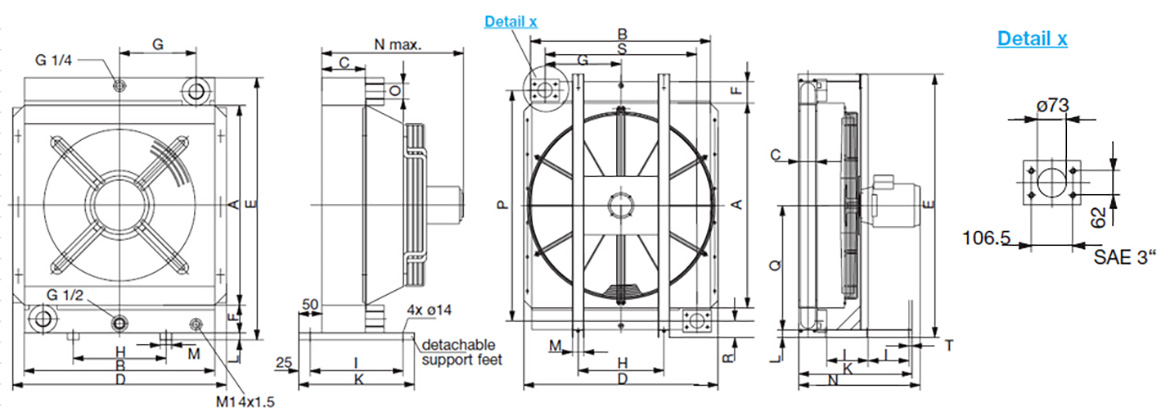

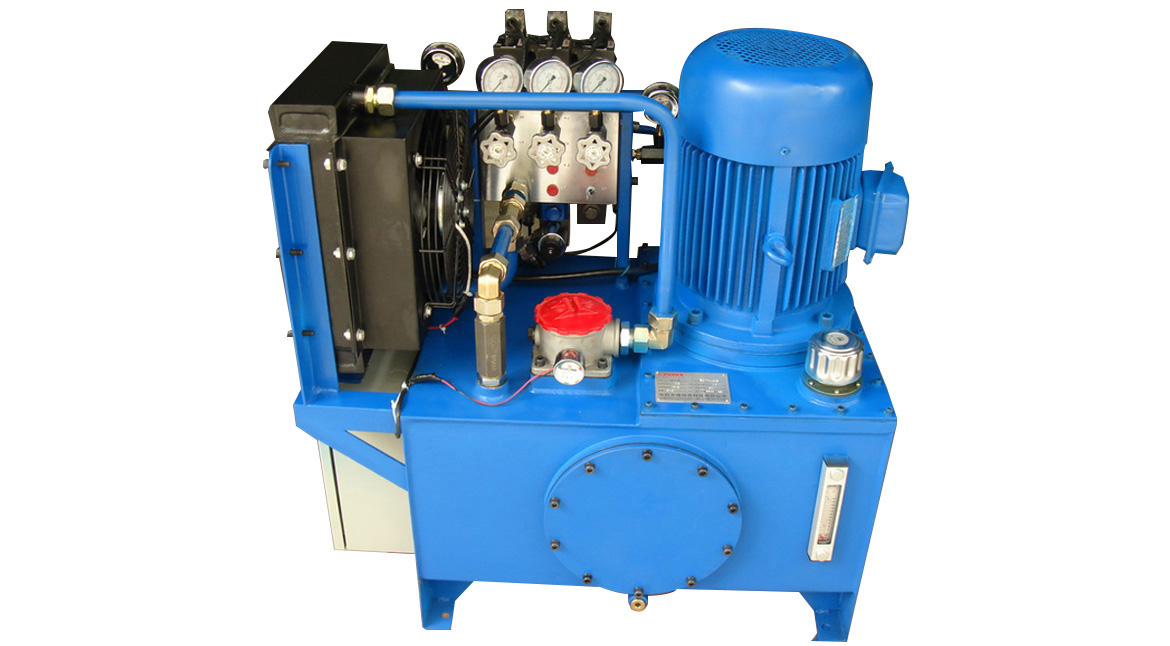

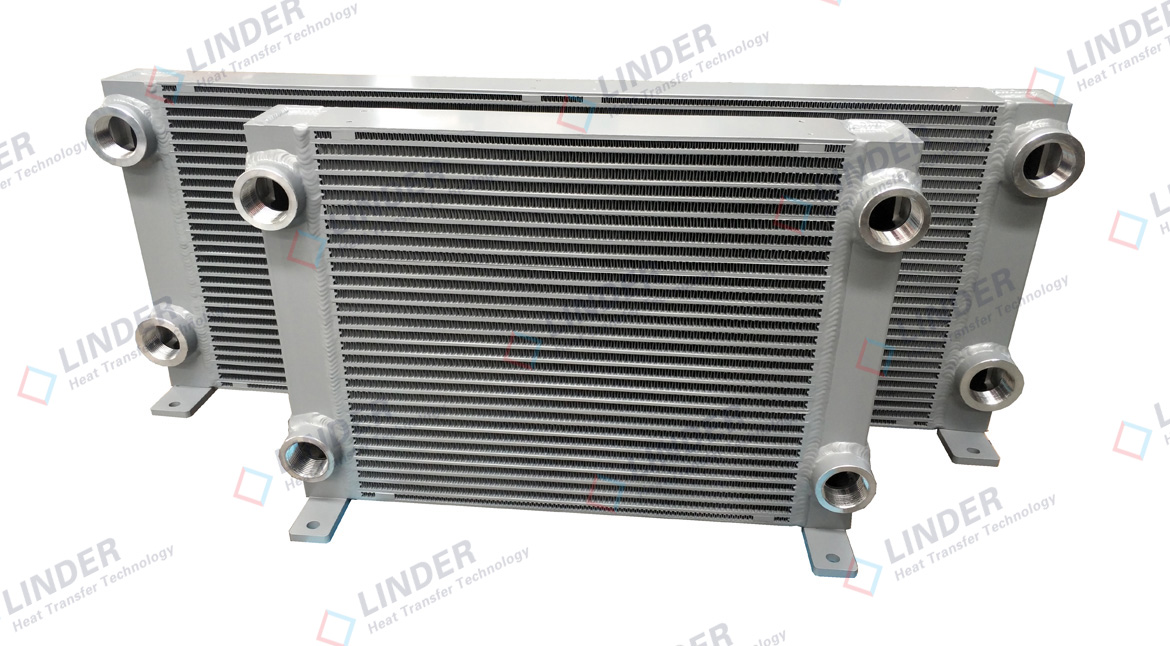

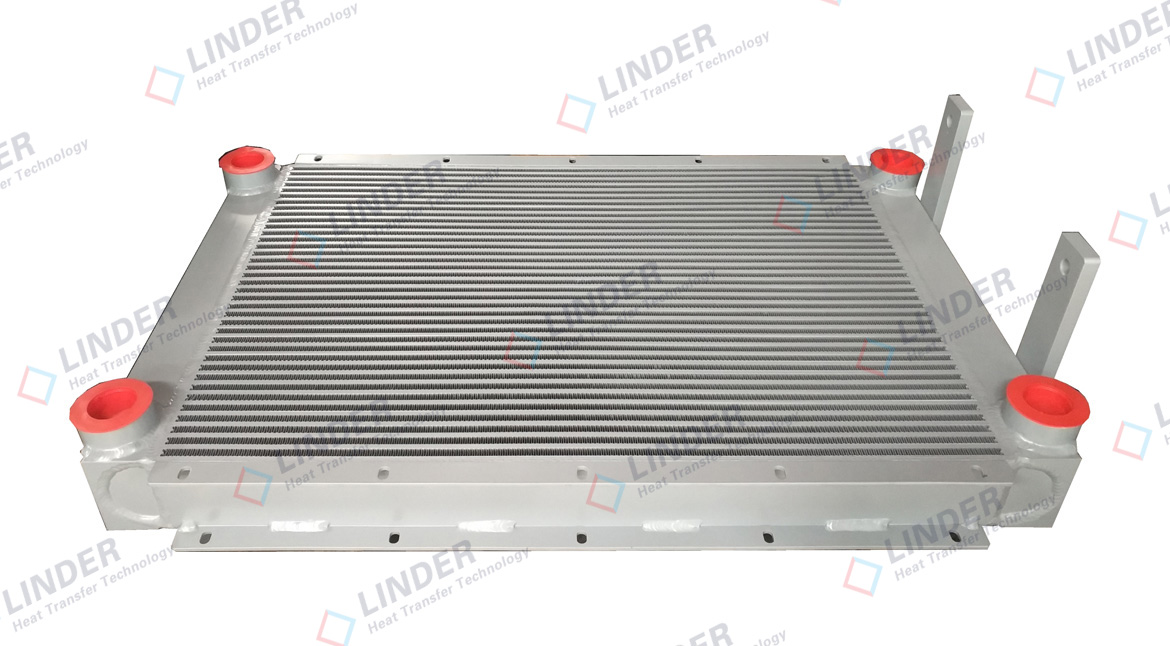

| Models and Dimensions | ||||||||||||
| Model and heat rejection(KW) | LS01 | LS02 | LS03 | LS04 | LS05 | LS06 | LS07 | LS08 | LS09 | LS10 | LS11 | |
| 1-5 | 3-10 | 8-15 | 10-20 | 15-25 | 20-35 | 25-40 | 35-75 | 60-120 | 85-120 | 120-260 | ||
| A | 200 | 300 | 400 | 400 | 550 | 650 | 800 | 800 | 1050 | 1200 | ||
| B | 191 | 302 | 396 | 396 | 411 | 557 | 557 | 651 | 915 | 1206 | ||
| C | 65 | 65 | 65 | 94 | 94 | 94 | 94 | 140 | 94 | 113 | 140 | |
| D | 248 | 355 | 451 | 451 | 466 | 607 | 608 | 722 | 995 | 1276 | ||
| E | 315 | 415 | 515 | 535 | 690 | 790 | 940 | 960 | 1352 | 1520 | ||
| F | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 110 | 110 | ||
| G | 65 | 115 | 160 | 160 | 165 | 235 | 235 | 280 | 390 | 532 | ||
| H | 80 | 150 | 200 | 200 | 200 | 310 | 310 | 400 | 440 | 525 | ||
| I | 150 | 200 | 200 | 250 | 250 | 250 | 250 | 250 | 215 | 210 | ||
| K | 200 | 250 | 250 | 300 | 300 | 300 | 300 | 300 | 580 | 750 | ||
| L | 15 | 15 | 15 | 15 | 20 | 20 | 20 | 20 | 40 | 50 | ||
| M | 25 | 25 | 25 | 25 | 30 | 50 | 50 | 50 | 65 | 100 | ||
| Nmax | ~175 | ~375 | ~400 | ~430 | ~440 | ~450 | ~450 | ~590 | ~650 | ~790 | ~900 | |
| O | G1" | G1" | G1" | G11/4" | G11/4" | G11/4" | G11/4" | G11/2" | ||||
| P | 1182 | 1332 | ||||||||||
| Q | 635 | 710 | ||||||||||
| R | 91 | 94 | ||||||||||
| S | 780 | 1064 | ||||||||||
| T | 15 | 20 | ||||||||||
